Factory Supply Telescopic Cylinder Electric Hydraulic Lifting Water Well Drilling Rig

Factory supply telescopic cylinder electric hydraulic lifting water well drilling rig

Description:

The hydraulic lifting electric drilling machine produced by our company is a simple, convenient, economical and practical new mechanized drilling machine. Its advantages are: low power, large torque, small size, portable, high efficiency, easy operation and noise. Small well drilling machine adapted to various environmental terrains. The machine is easy to use, simple to operate, and has a fast hole-forming speed of about 10 meters per hour. The noise is small, the operation is extremely simple, and the operation can be performed by a single person. The mechanical self-unloading drill pipe is taken as an example of a 100-meter one-hole well. The average takes about 10 minutes, and it is easy to move. After completing the well-drilling operation, the single-person operation can complete the transfer work.

Parameter:

Model type	BF-Hydraulic electric drilling machine
Voltage	3 phase 380V/Can be positive &negative
motor power	main motor 3kw/5KW,oil Pump 3KW
Drilling diameter	32-220mm
Drilling pipe diameter	1 inch,1.2 inch,1.5 inch or customized
Drill bit specification	Multi-diameter alloy and diamond bit are optional
Drilling depth	100m
Weight	200kg
Suitable for the soil	Soil layer, quicksand layer, a small amount of rock layer, pebble, etc

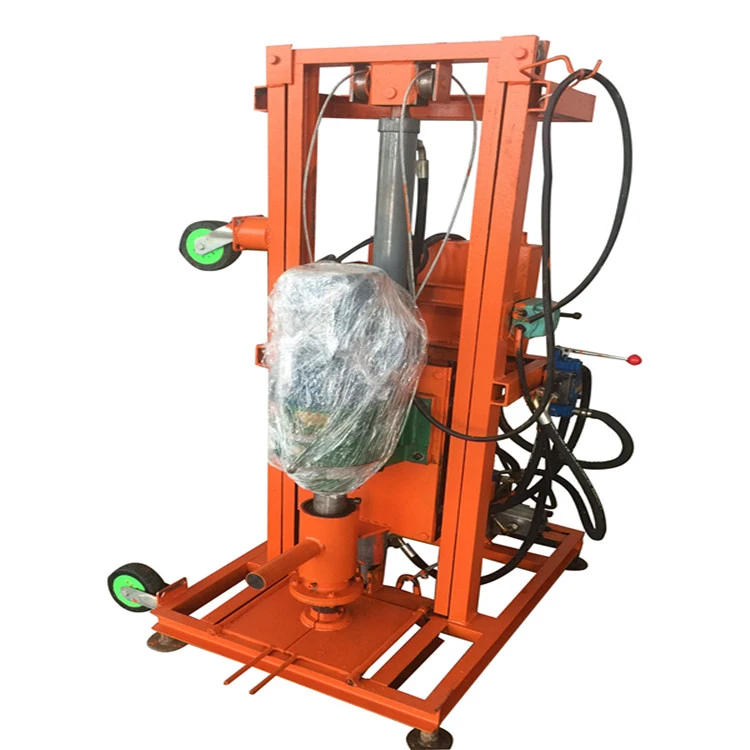

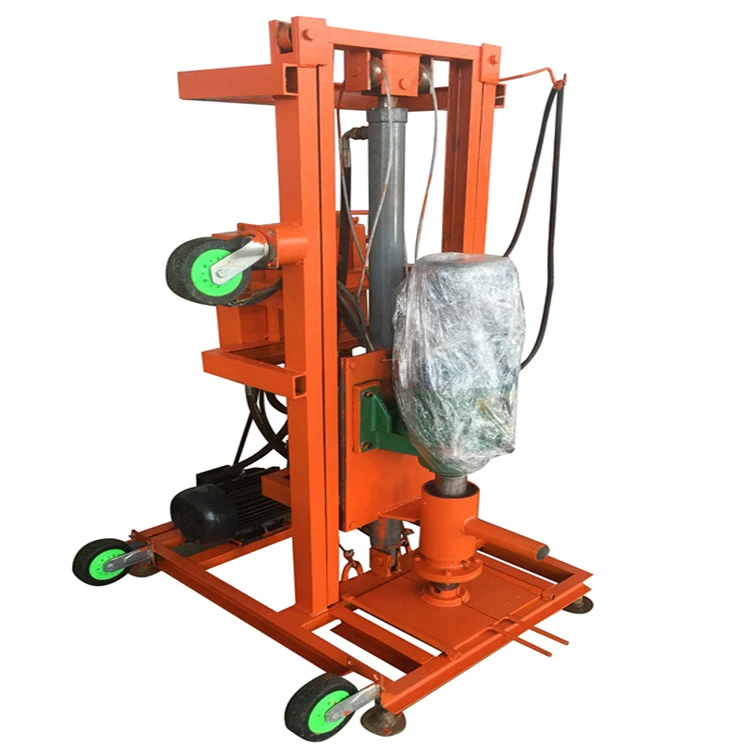

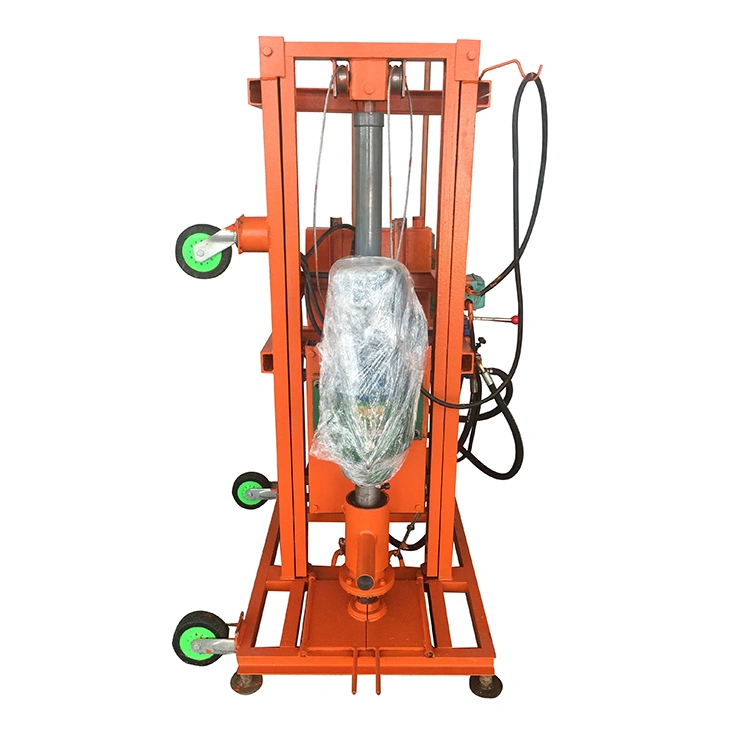

Product Pitcture:





Company profile:






Contact us if you need more details on Water Well Drilling Rig. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Water Well Drilling Rig for Sale、Tractor Mounted Water Well Drilling Rig. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Drilling Machinery
