15HP Diesel Type Hydraulic Water Well Drilling Rig Machine for Geophysical Exploration

15HP Diesel type hydraulic water well drilling rig machine for geophysical exploration

Description:
1.Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2.With hydro-automatic feeding device, and high drilling efficiency.
3.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4.Close levers, convenient to operate, safe and reliable operations.
5.Compact in structure. All the drill, Water Pump and diesel engine installed on one base frame result in space-saving.
6.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

Parameter:

Unity machine parameter
Drilling depth	100m
Drilling diameter	200mm
Drill rod diameter	50mm
Drilling angle	90°~75 °
Drill weight (No include power)	510kg
Spindle
Spindle speed	64 128 287 557 r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	2400kg
Reel lifting speed	0.41 0.82 1.64m/s
Tightrope caliber	12.5mm
Tightrope cubic measure	35mm
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Distance between drill and hole	450mm
Mud Pump
Type	Horizontal single urn twin action
Displacement	170L/mim
Power
Diesel engine	S1115 15HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm

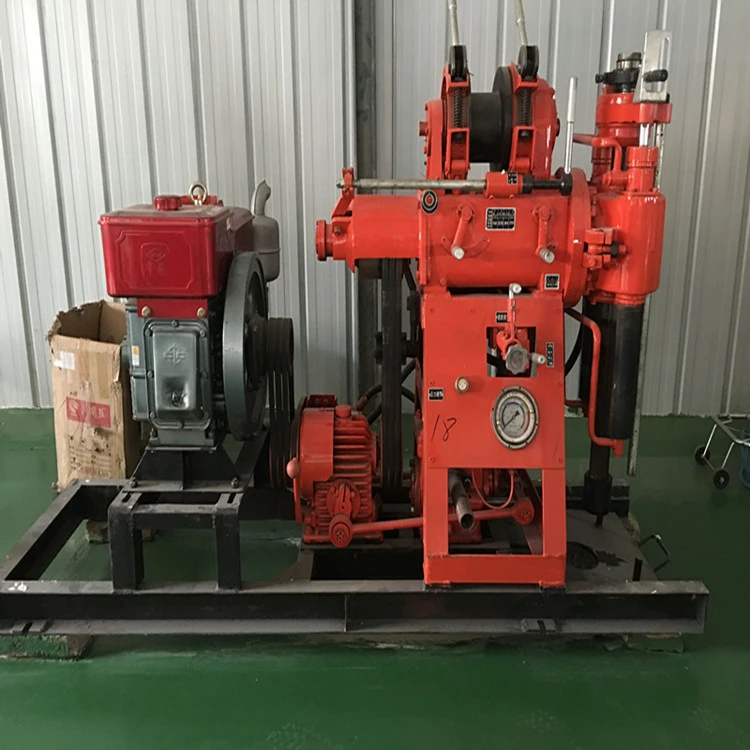

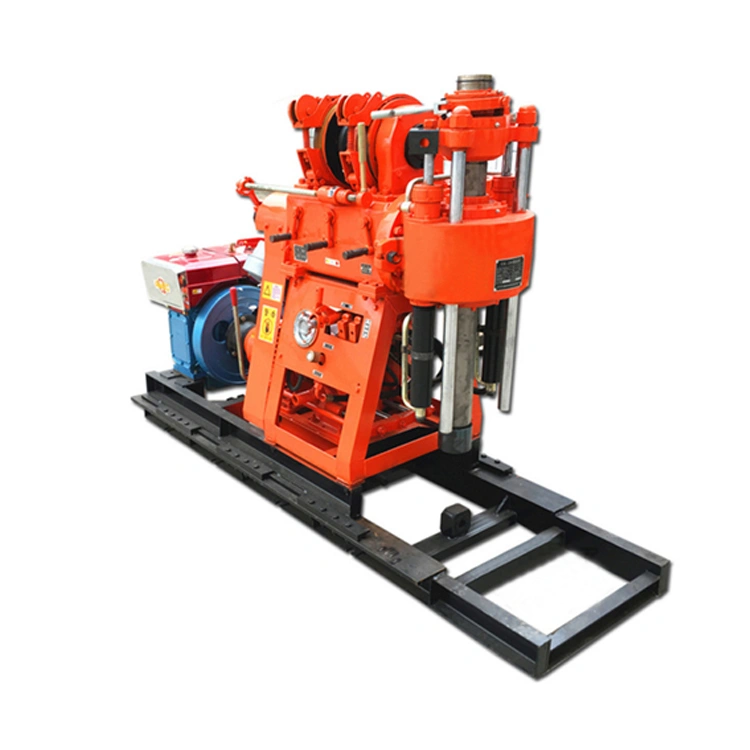

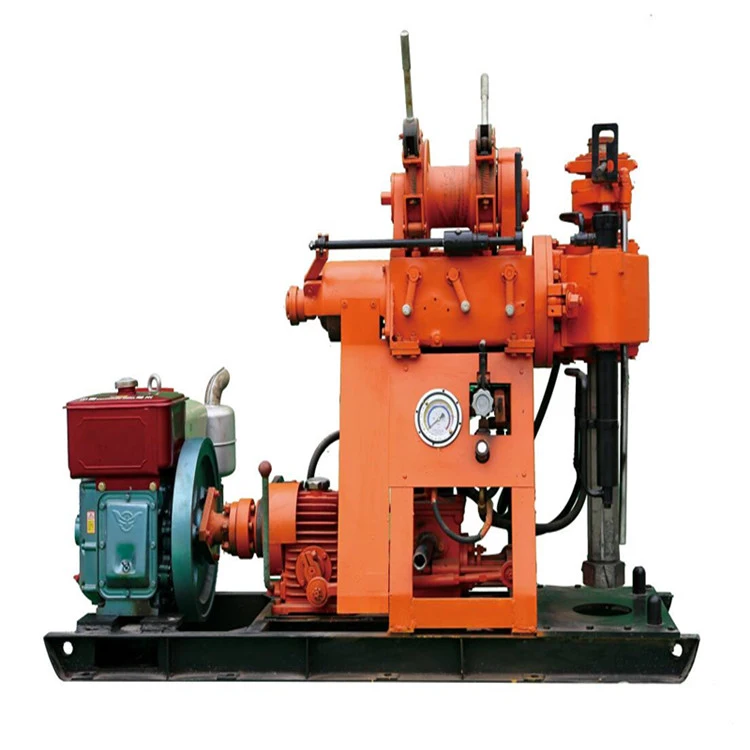

Product picture:
